Thiele Small Parameters : Measure Thiele Small Parameters Using Free Software Audio Judgement / Thiele small loudspeaker parameters page 4 of 5 to measure vas, use a good solid enclosure of known volume that is approximately a cube of the nominal speaker size.. This page contains the thiel/small parameters and speaker specifications for carvin audio replacement speakers and high frequency transducers. Hz voicecoil inductivity at 1000 hz. Thiele/small parameters page 1 jine 1,2001 thiele/small low frequency driver parameters and definitions. Thiele / small (t/s) speaker parameters. Diameter speaker cone dd (half rim):
Fs or f0 (hertz) this is the resonance frequency in free air. However they are of limited use when designing a guitar speaker cabinet. The parameters are named after two australian loudspeaker engineers: With these parameters, a suitable enclosure can be designed and the performance can be modelled. Jbl professional model fs qts qms qes vas eff pe xmax re le sd bl mms flux 112a 40 0.21 4 0.22 34.0 0.9 60 2.79 5.8 0.3 0.018 12 22 0.95 11ga 28 0.46 5 0.51 73.6 0.3 50 4.83 5.2 0.6 0.018 6.7 25 0.85.

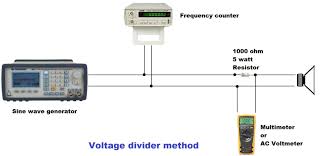

Bz 5604 Pulse Thiele Small Parameters Calculation Software Durham Instruments from disensors.com A dimension ratio of 1 : Guitar speakers are not recommended for use in ported cabinets (as the increase in cone excursion below the tuning frequency can. Thiele, and later by r.h. With an 8 ohm driver, 10 ohm resistor and 1v signal, you will typically have a nominal current of around 55ma. Learn how to measure thiele small parameters using your sound card. Free air resonance (f(s)), q(ts), and volume of suspension (v(as)). The software which we will use is called room eq wizard, which is free.i mentioned in the. These are electromechanical parameters that can be used to define how a loudspeaker driver performs.

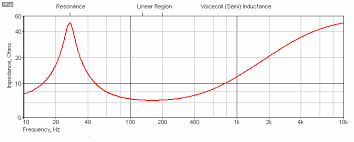

At resonance, the speaker's impedance increases dramatically.

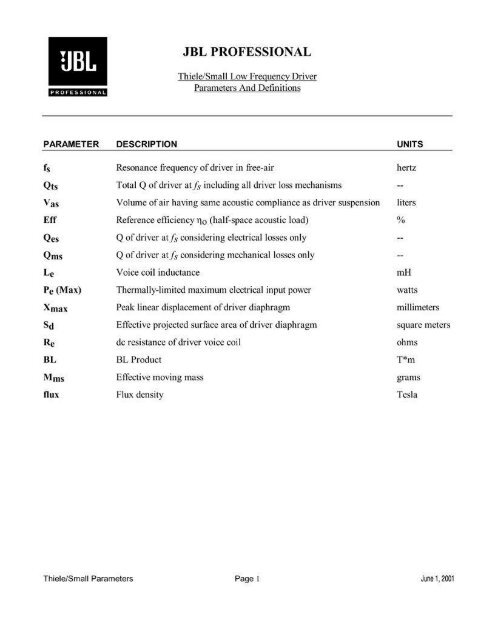

A dimension ratio of 1 : Fs is the resonant frequency of a speaker in free air (not in an enclosure). I would strongly recommend reading it before you continue with this page. For example, a 300mm driver (12) needs a box of about 28 litres (1 cu ft). Thiele small low frequency driver parameters and definitions march 17, 2008 page 3 of 5 model fs qts qms qes vas eff pe xmax re le sd bi mms flux 2044g 31 0.32 7 0.34 374.0 3.2 500 9.5 2.5 1 0.127 15.3 161 2044h 31 0.32 11 0.33 374.0 3.2 500 9.5 5 2 0.127 21.7 161 Subwoofer box design online software. Then parameters have no relevance to open back cabinets. Fs or f0 (hertz) this is the resonance frequency in free air. They are named after a. This is a short definition list of the thiele / small (t/s) speaker parameters. At resonance, the speaker's impedance increases dramatically. It is the frequency where the driver moves with minimal effort. The drivers thiele/small parameters were brought about in a bid to standardize and bring meaning to the behavior of a cone loudspeaker.
This page contains the thiel/small parameters and speaker specifications for carvin audio replacement speakers and high frequency transducers. This group of parameters outlined by a.n. If we were to think of this as food, the thiele/small parameters would be the ingredients to a cake (driver). I would strongly recommend reading it before you continue with this page. Hz voicecoil inductivity at 1000 hz.
Html Report Klippel Gmbh from www.redrockacoustics.com The parameters being measured are 'small signal', and it essential that a small signal is actually used. Subwoofer box design online software. Thiele small parameters are useful for controlling the low frequency response of sealed or ported cabinet systems by changing the cabinet internal volume, and port dimensions. This is a short definition list of the thiele / small (t/s) speaker parameters. Jbl professional model fs qts qms qes vas eff pe xmax re le sd bl mms flux 112a 40 0.21 4 0.22 34.0 0.9 60 2.79 5.8 0.3 0.018 12 22 0.95 11ga 28 0.46 5 0.51 73.6 0.3 50 4.83 5.2 0.6 0.018 6.7 25 0.85. Let's round up most of the thiele small parameters, try to explain them and give real world examples : Small, describe the electrical and mechanical characteristics of mid and low frequency loudspeakers operating in their pistonic region. For example, a 300mm driver (12) needs a box of about 28 litres (1 cu ft).
The parameters being measured are 'small signal', and it essential that a small signal is actually used.

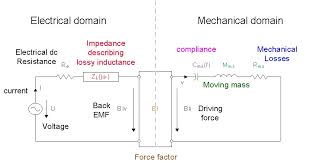

With these parameters, a suitable enclosure can be designed and the performance can be modelled. This is a short definition list of the thiele / small (t/s) speaker parameters. Diameter speaker cone dd (half rim): The software which we will use is called room eq wizard, which is free.i mentioned in the. Easy and convenient build your box. This page contains the thiel/small parameters and speaker specifications for carvin audio replacement speakers and high frequency transducers. If you haven't already read the speakers page of this site. Thiele/small parameters page 1 jine 1,2001 thiele/small low frequency driver parameters and definitions. 0.618 provides cancellation of resonating frequencies inside the enclosure, this dimension ratio is used to calculate the cabinet dimensions. Learn how to measure thiele small parameters using your sound card. The free air resonance is the resonant frequency of the speaker found in free air. These specifications are used primarily by advanced consumers that are looking for low frequency performance of a subwoofer. Free air resonance (f(s)), q(ts), and volume of suspension (v(as)).
This group of parameters outlined by a.n. These specifications are used primarily by advanced consumers that are looking for low frequency performance of a subwoofer. Then parameters have no relevance to open back cabinets. These are electromechanical parameters that can be used to define how a loudspeaker driver performs. Guitar speakers are not recommended for use in ported cabinets (as the increase in cone excursion below the tuning frequency can.
Sony Xs L123p5b L153p5b L123p5b L103p5b User Manual Thiele Small Parameters Xsl123p5b Specs from usermanual.wiki Thiele, and later by r.h. This page contains the thiel/small parameters and speaker specifications for carvin audio replacement speakers and high frequency transducers. Free air resonance (f(s)), q(ts), and volume of suspension (v(as)). Easy and convenient build your box. However they are of limited use when designing a guitar speaker cabinet. If we were to think of this as food, the thiele/small parameters would be the ingredients to a cake (driver). The software which we will use is called room eq wizard, which is free.i mentioned in the. Then parameters have no relevance to open back cabinets.
Thiele, and later by r.h.

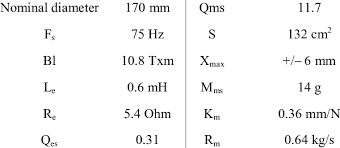

Using the thiele small parameters of a typical guitar speaker, you will find that halving or doubling the cabinet size makes minimal difference to the response. These specifications are used primarily by advanced consumers that are looking for low frequency performance of a subwoofer. This group of parameters outlined by a.n. They are named after a. Fs is the resonant frequency of a speaker in free air (not in an enclosure). This is a short definition list of the thiele / small (t/s) speaker parameters. A dimension ratio of 1 : With these parameters, a suitable enclosure can be designed and the performance can be modelled. If you haven't already read the speakers page of this site. Jbl professional model fs qts qms qes vas eff pe xmax re le sd bl mms flux 112a 40 0.21 4 0.22 34.0 0.9 60 2.79 5.8 0.3 0.018 12 22 0.95 11ga 28 0.46 5 0.51 73.6 0.3 50 4.83 5.2 0.6 0.018 6.7 25 0.85. For reference, a cubic foot is 28.3168 litres, and one litre is contained by a cube of 100mm to each side. Thiele and small parameters (also referred to as t/s parameters) are used to define technical electromechanical parameters for a loudspeaker. If only q ms and q es are known.
The parameters being measured are 'small signal', and it essential that a small signal is actually used thiele. If we were to think of this as food, the thiele/small parameters would be the ingredients to a cake (driver).
